Hot Dipped Galvanized Steel Oval Wire

Hot dipped galvanized oval wire can have a light or heavy zinc coating. This type of oval wire usually has a length of 1000 meters or cut to any custom length. Supplying forms of hot dipped oval wire can be two major types: coiled wire or straight cut wire in pieces. The coiled oval wire is a standard 45 kg coil package.

Technical Information of Hot Dipped Gal. Oval Wire:
Tensile strength: 1300-1400 N/mm2
Breaking loading:700KGF Min.
Carbon: Mid carbon - SAE reference 1045 - 1055
Spring effect: The hot dipped oval wire in coil cannot come up by itself.
Zinc Coating of the Hot dipped oval steel wire: Compared with the electro galvanized zinc coating of 8-13g/m2, the hot dipped galvanized zinc coating for the oval wire can be 30-60g/m2 normally or 100-300g/m2 as custom required.

Detailed size of Hot dipped Galvanized Oval Wire:

Oval Wire Length (meters /coil)  Coil Weight (KG)  Diameter (mm)  Minimum breaking stress (KG) Zinc Coating
 1000  43  3.0 - 2.4  800  superior
 1000  43  3.0 - 2.4  725  standard
 600  43  3.9 -3.0  1200  standard
 1000  36  2.7 - 2.2  600  standard
 1000  36  2.2 - 2.7  345  standard

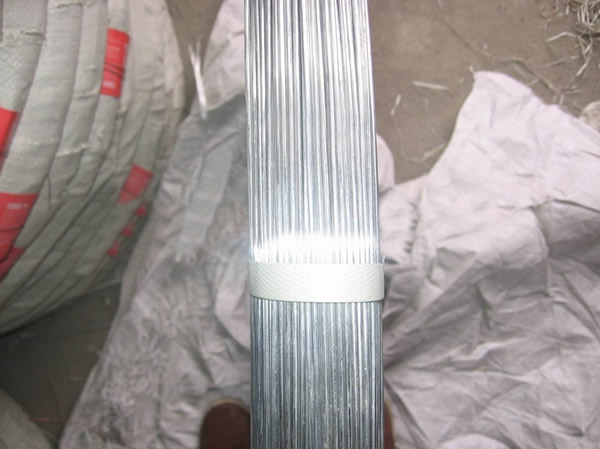

Oval Wire with Hot Dipped Zinc Coating
Coiled Hot Dipped Steel Wire with Oval Shaped Section
